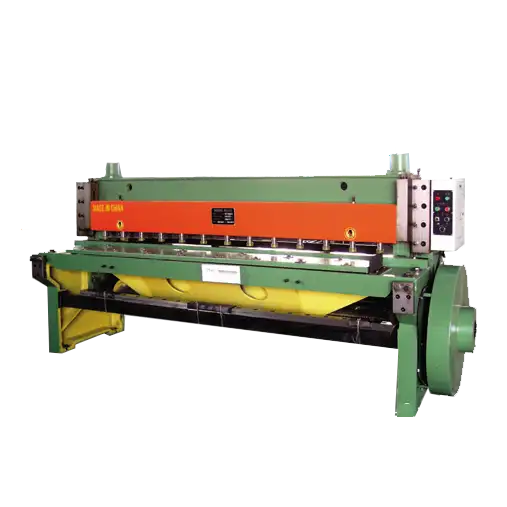

Q11 series mechanical shearing machine
Rack and knife holder vibration stress relief, whole machine welding, durable; Advanced integrated hydraulic system, reliable; Using three-point support rolling guide rails to eliminate support clearance and ensure shearing quality; Manual or electric adjustment of blade clearance, fast and accurate; Upper and lower blades use four-sided blades to increase service life; Shearing angle can be electrically adjusted to reduce the deformation of the sheared sheet; With segmented length shearing function; Electric back gauge, digital display, accurate and reliable; Shearing end face, shearing speed, and shearing thickness are superior to hydraulic swing shears of the same specification.
Technical Parameters
| Specifications Model |
Max. cutting thickness Max. cutting Thickness(mm) |
Max. cutting width Max. cutting Width(mm) |
Number of strokes No. of strokes (min') |
Shearing angle Rake angle |
Back gauge distance Adj. Distance of back gauge(mm) |
Main motor power Power of main motor (kw) |
Overall dimensions Overall dimensions (mm) |
| 3×1300 | 3 | 1300 | 20 | 2°25' | 350 | 3 | 2080×1505×1245 |
| 3×1500 | 3 | 1500 | 20 | 2°25′ | 350 | 3 | 2280×1505×1245 |
| 4×2000 | 4 | 2000 | 20 | 1°30' | 500 | 5.5 | 3000×1970×1250 |
| 4×2500 | 4 | 2500 | 20 | 1°30' | 500 | 5.5 | 3500×1970×1250 |
| 4×3200 | 4 | 3200 | 20 | 1°30' | 600 | 7.5 | 4200×1970×1250 |
| 4×4000 | 4 | 4000 | 20 | 1°30' | 600 | 7.5 | 5000×1970×1250 |
| 6.3×2000 | 6.3 | 2000 | 24 | 2° | 500 | 7.5 | 3175×1765×1530 |
| 8×2000 | 8 | 2000 | 24 | 2° | 500 | 11 | 3275×1865×1530 |
| 6×2500 | 6 | 2500 | 24 | 2° | 500 | 7.5 | 3675×1765×1530 |
| 6×3200 | 6 | 3200 | 20 | 1°45′ | 650 | 7.5 | 3775×1865×1530 |
| 8×2500 | 8 | 2500 | 20 | 2°30' | 650 | 11 | 3680×2250×2450 |
| 13×2500 | 13 | 2500 | 30 | 3° | 700 | 15 | 3680×2330×2500 |
| 16×2500 | 16 | 2500 | 30 | 3° | 700 | 22 | 3680×2800×2450 |
| 20×2500 | 20 | 2500 | 25 | 3° | 750 | 22 | 3950×2800×2900 |
Due to continuous product iteration and updates, pictures and parameters are for reference only, and the actual order shall prevail.
